|RAM+ROM:||2GB+16GB||USB Interface:||USB2.0 TypeC, Support OTG|
|Built-in Battery:||Lithium Polymer Battery 8000mAh||Material:||ABS|
|System:||Android System||Frequency:||UHF 860-960Mhz|
8000mAh Battery UHF Rfid Reader,
ABS UHF Rfid Reader,

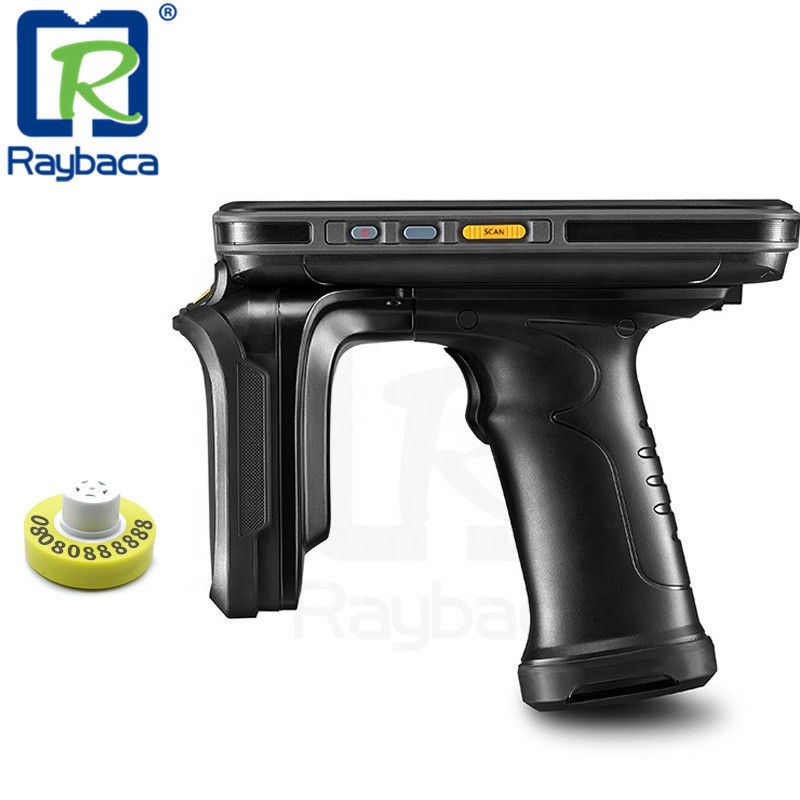

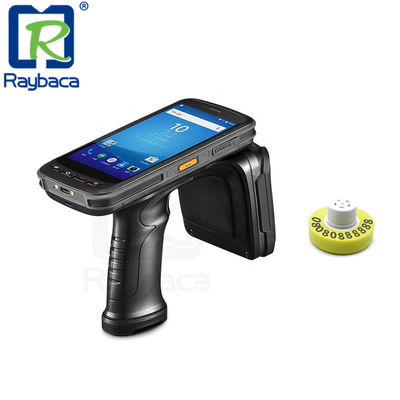

UHF Handheld RFID Reader
UHF rfid reader can be Statistics of the animal number match with management system
Handheld Electronic UHF Reader use the andorid systmen .support of the second -delopment . can be match with Animal Management system .The Android Mobile Terminal Device is a long distance RFID reader conforming ISO11784/85, and the max reading distance 45cm±10% with our Raybaca tag.
|RBC-PDA46 Android Mobile Terminal Parameters|
|Size||164.2mm x 80.0mm x 24.3mm|
|LCD||5.2 inch, IPS FHD 1920x1080 resolution|
|Touch screen||Corning Gorilla Glass, supports multi-touch, supports wet hands, gloves operation|
|Button||Power button, 2 scan buttons, multi-function button, physical HOME, MENU and back button|
|Audio||2 microphones, speakers, support for voice calls; no headphone jack, support for Bluetooth headsets|
|Sensor||gravity sensor, distance sensor, light sensor, vibration motor|
|USB interface||USB2.0 TypeC, support OTG|
|Expansion card slot||
1 SIM card slot, one card slot SIM or TF two
|Built-in battery||Rechargeable lithium polymer battery 8000mAh, non-removable design|
|Operating system||Native Android Android 6.0, customizable, built-in authorization tool, only allows to install and run whitelisted APP|
|Processor||Cortex-A53 1.3GHz quad core|
|Extended storage||MicroSD (TF) card can be expanded to 32GB|
Android Studio, Eclipse, partially support Xamarin (C#)
|Operating temperature||-20 ° C to 50 ° C|
|Storage temperature||-40 ° C to 70 ° C|
|Humidity||5%RH-95%RH (no condensation)|
|Protection level||Host IP65, up to IEC sealing standard|
|Drop specification||In the operating temperature range, all 6 sides can withstand multiple (at least 20 times) impact from the height of 1.5 meters to the concrete floor|
|Rolling test||Rolling 1000 times for 0.5 meters, 6 contact surfaces are still running stably after rolling, reaching IEC rolling specifications|
|Electrostatic discharge||±8KV air discharge, ±4KV contact discharge|
|Network standard||4G full Netcom (does not support telecom 2G/3G)|
|Bluetooth||Bluetooth 4.0 with BLE support|
|WLAN||supports IEEE802.11 a/b/g/n protocol and supports dual-band wifi (2.4G+5G)|
|GPS||integrated GPS, GlONASS, built-in antenna, support AGPS;|
operating frequency (860-960MHz custom band)
China frequency 920-925MHz
US frequency 902-928MHz
European frequency 865-868MHz (ETSI EN 302 208)
Other frequencies Other multinational frequency standards (can be customized)
|Protocol Standard||EPC C1 GEN2 / ISO18000-6C|
|Antenna parameters||Linearly polarized antenna (1.8dBi) / Circularly polarized antenna (4dBi)|
|Power||1W (30dBm, support +5dBm ~ +30dBm adjustment)|
|Card reading Distance||
> 6 meters (line polarization);
>10 meters (circular polarization, outdoor open environment);
>20 meters (circular polarization, indoor)
>200 tags per second (circular polarization)
* Card reading distance and group reading rate are related to the actual environment."
|Rear camera||13 million pixel color camera, support for auto focus, flash.The camera and the two-dimensional read head and UHF are in the same reading direction. "|
|Two-dimensional scanning head||
Optional Zebra SE4710, Honeywell N6603;
Supported: PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX )
Charger support, 5V/2A
Data line support, TypeC data line
Three Guarantees Certificate Support
A RFID Reader is a device that uses radio-frequency waves to wirelessly transfer data between itself and a RFID tag/label in order to identify, categorize and track assets. When combined with the right RFID software, a RFID reader can identify objects quicker, more accurately, at a reduced overall cost, and at various points of the object’s lifecycle.
We carry RFID readers from ourself brand Raybaca. Our RFID Readers are offered in various form factors with many capabilities, such as Handheld, Long-range Stick, Mini-Pocket, Laser, Imager, ,Fixed, Bluetooth, USB, UHF, HF, iOS/Android Compatible, and more! .
Call us for a free consultation on a RFID animal tracking solution or to help you find the right RFID Reader to help your animal management system in a better situation.
What's functions updated?
Where can we use it?
1. Convenient: 24th Hours sales/After-sales Service online or on the phone
2. Quality Assurance: We will discuss with you and supply you the best quality comfortable to your market
3. Quick delivery: Time is money, we promise we always will deliver the goods quicker than others
4. According to customers’ drawing,customized specifications are welcomed
5. Low MOQ,small orders can be accepted.
As a technology company specializing in the management of IOT RFID products and related system software in the animal industry, Raybaca IOT Technology Company have been ranked among the top spears in the domestic related industries for years. Our main products cover RFID ear tags, RFID readers of LF/HF/UHF, chips, transponders,wireless network equipments, and so on.
